The ESX DBX SERIES bassreflex systems with trapezoidal housing are all equipped with protective grilles that optimally protect the high-quality woofers with their paper cone. These are equipped with a heavy-duty 50 mm voice coil (DBX206 38 mm) and provide powerful basses. Specially the two small dual subboxes turn on powerful and offer for their compact dimensions enormous amount of bass fun.

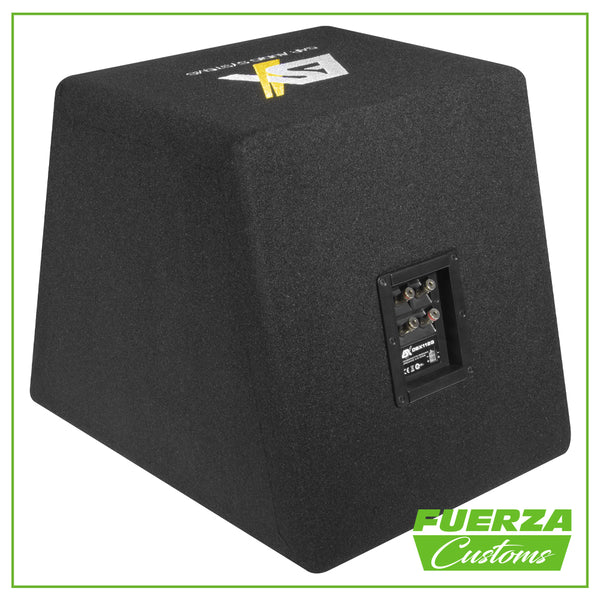

Besides the conventional connection sockets, where the 2+2 Ω output can also be wired to a single 4 or even 1 Ω output, the box also has the new and innovative Quick Connect socket, which enables a plug+play connection with each amplifier via a 4 -fold Molex socket. This requires special Quick Connect subwoofer cables, available in 4 different lengths.

Specifications
30 cm (12”) Single Bassreflex System
Power Rating 300/600 Watts RMS/Max.
Impedance 2+2 Ω
50 mm (2") Voice Coil
Subwoofer with Scooped Paper Cone
Subwoofer Protection Grille
High-quality Logo Embroidery
Robust Carpet Cover
Quick Connect Socket
Dimensions 38 x 40 x 48/28 cm

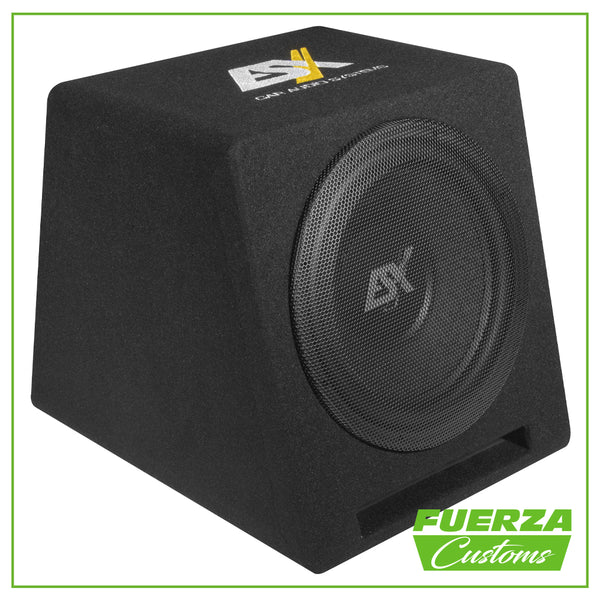

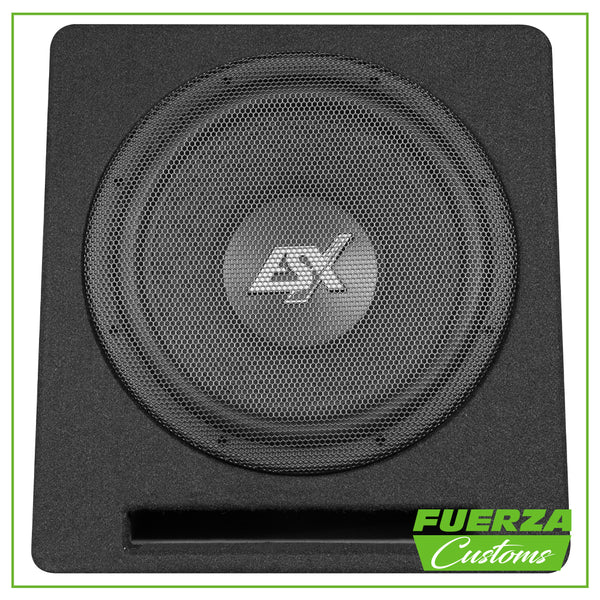

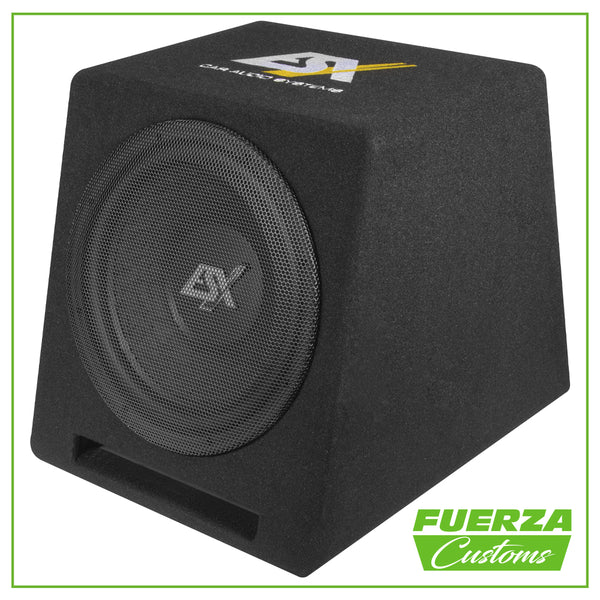

DBX112Q Passive Enclosure
